| BRAND | Labom |
| Product | CV3110-A1051-F10-H1100-M1-N10-T4-T20-K1085-K80 |
| Description | PRESSURE TRANSMITTER |
| Internal code | FBR376349 |
| Weight | 0.65 |
| Custom code | 90262020 |

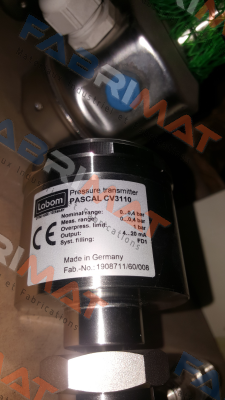

| Technical specification | CV3110 PRESSURE TRANSMITTER PASCAL CV, for diaphragm seal operation, hygienic A1 pressure sensor: piezoresistive for gauge pressure 051 nominal range: 0...0.4 bar, overload limit 1 bar measuring range setting: turndown 5:1 accuracy: <= 0.15% of measuring span (linearity, hysteresis and repeatability) F10 measuring range: 0...0.4000 bar H11 output signal: 4...20 mA, rising characteristic (standard) 0 setting damping: 0.0 sec. (standard) 0 setting alarm state: < 3.6 mA (standard) M1 display module: without screw cap closed, without window N10 switching module: without T4 case: hygienic housing design with screw cap material: stainless steel degree of protection: IP 69K T20 electrical connection: cable gland M 16 x 1.5, polyamide black K1085 design standard K80 process connection: G1 A / PN10-50 process adapter with hygienic process connection (elastomer-free) process temperature 0...+125 °C, short term up to +140 °C, 1 h # Spare part for serial no. 1908711/60/008 |
Where can I buy CV3110-A1051-F10-H1100-M1-N10-T4-T20-K1085-K80 by Labom in France?
You can purchase CV3110-A1051-F10-H1100-M1-N10-T4-T20-K1085-K80 by Labom from FABRIMAT SARL. We serve customers across France, offering competitive prices and reliable service.
What is the price of the CV3110-A1051-F10-H1100-M1-N10-T4-T20-K1085-K80?
For customized pricing and availability, please fill out our contact form or give us a call. We are dedicated to providing solutions that align with your specific requirements.
Who is the official distributor or seller of Labom in France?
While we are not the official distributor or seller of Labom in France, we source our products from reliable channels and offer you original Labom equipment at competitive prices.
How can I access CV3110-A1051-F10-H1100-M1-N10-T4-T20-K1085-K80 catalogs, user manuals, technical documents, and PDFs?
You can access catalogs, user manuals, and technical documents for CV3110-A1051-F10-H1100-M1-N10-T4-T20-K1085-K80 on our website. Visit our resources section or contact us directly for specific documents.
Do you provide technical support for CV3110-A1051-F10-H1100-M1-N10-T4-T20-K1085-K80?
While we do not offer direct technical support, we can assist you in contacting the manufacturer to ensure you receive the support you need.
